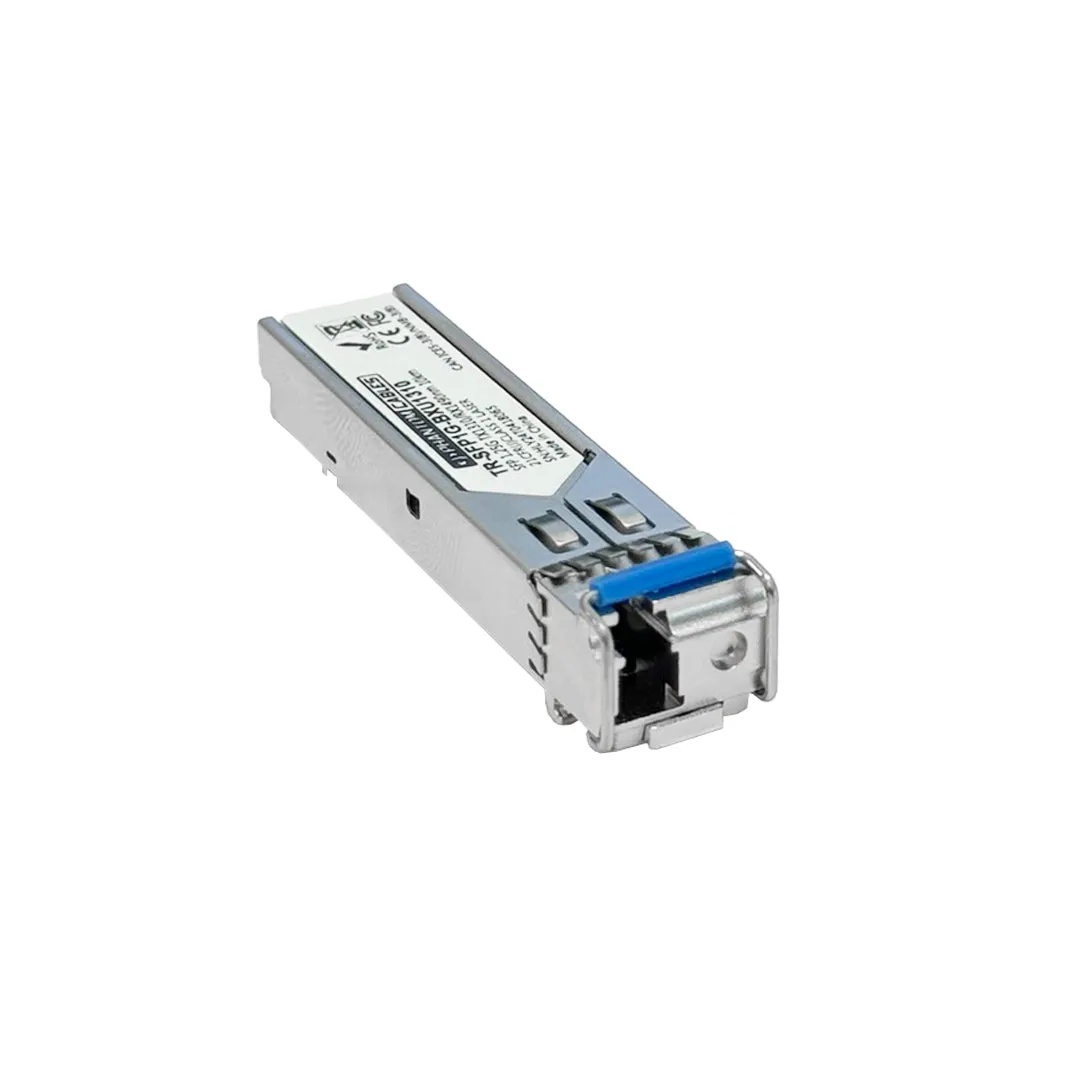

This is a bidirectional Enhanced Small Form-factor Pluggable (SFP) transceiver module with maximum data transfer rate of 1.25 Gbps up to 10km over a simplex singlemode fiber cable. It is used in network devices with an SFP slots. The transceivers are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Features:
- Dual data-rate of 1.25Gbps/1.063Gbps operation
-
Two types：
A:1310nm FP Laser transmitter,1490nm PIN receiver
B:1490nm DFB Laser transmitter,1310nm PIN receiver
- Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Compatible with RoHS
- Compatible with SONET OC-24-LR-1
- 3.3V single power supply
Applications:
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Specifications
|
Physical Characteristics
|
||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 85°C | |
| Laser Type | Class 1 | |
|
Connectors
|
||
| Connector | LC Simplex | |
|
Performance
|
||
| Media Supported | 1000base-BX-U Singlemode Fiber | |
| Data Trasfer Rate | 1.25Gbps | |
| Maximum Transmission Distance |
10km |
|
| Wave Length |
TX: 1310nm RX: 1490nm |
|
| DDM Support | Yes | |
|
Certifications
|
||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
|
Packaging Information
|
||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
|
Warranty Information
|
||
| Warranty | 5 Year Warranty | |
Spec Sheets
Compatibility List
- Avaya
- Force10
- D-Link
- EMC2
- F5 Networks
- Fortinet
- Hirschmann
- Linksys
- Moxa
- MRV
- Netgear
- Nokia Siemens Networks
- Palo Alto Network
- Qlogic
- RAD
- Ruijie Networks
- Supermicro
- Synology
- Telco Systems
- TP-Link
- Trendnet
- Ubiquiti
- WatchGuard
- ZTE
